Equipment family

Vacuum Components, Suction Heads and Replacement Parts

Identify vacuum heads, cups, lifting tubes, hoses, controls and service parts by function and interface. Compare documented sizes and compatibility inputs.

Choose a replacement from the installed equipment and interface. Choose a new head from the workpiece and the complete lifting system. These are different requests: replacing a worn seal should not silently become a change to the lifting configuration.

Start with your handling task

Compare the models More selection guidance

Compare models and configurations

Browse equipment families

Filters include documented loads and overlapping conditional ranges. A range does not guarantee its upper value for every workpiece. Check material, seal, orientation and complete configuration.

26 configurations

Find the right component function

Function

Examples

Information that identifies the part

Package contact

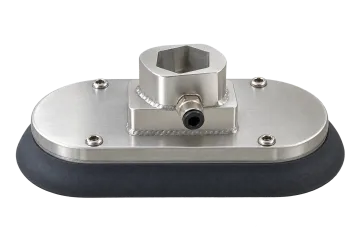

ET-VC-PAD-BAG-180 — Vacuum Cup for Bags & Boxes

180 × 370 mm bag/box cup; show actual head and attachment.

Panel contact

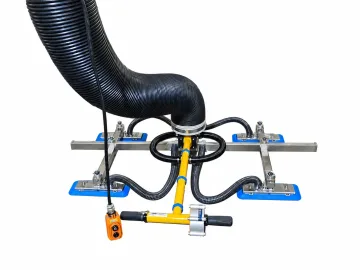

ET-VC-PAD-SHEET-4 — Four-Pad Suction Head for Large Panels

Four 140 × 370 mm pads; show layout and lifting-unit connection.

Tilting head

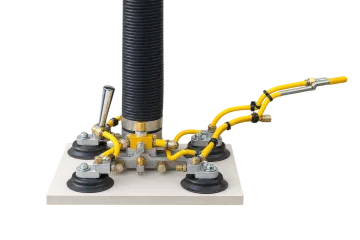

ET-VC-HEAD-FLIP — Panel Tilting Suction Head

90° MDF head; approved host and load scope need confirmation.

Lifting element

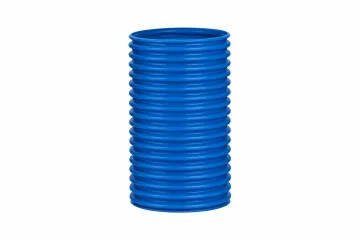

ET-VC-TUBE — Vacuum Lifting Tube

100–300 mm catalog diameter range; match the installed lifting unit.

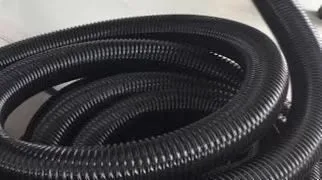

Supply hose

ET-VC-HOSE — Vacuum Supply Hose

32 / 52 mm diameter options and 10 m supply length. This is not a lifting tube.

Filtration

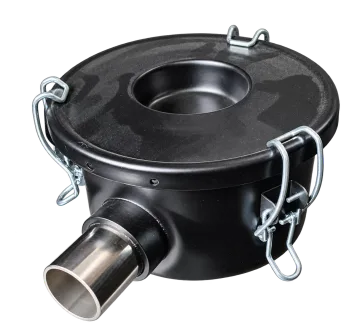

ET-VC-FILTER — Vacuum Filter

Installed filter identity, element and connections.

Indication / alarm

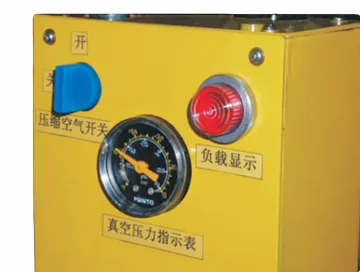

ET-VC-GAUGE — Vacuum Gauge & Alarm Assembly

Gauge/sensor connection and control function.

Vacuum source

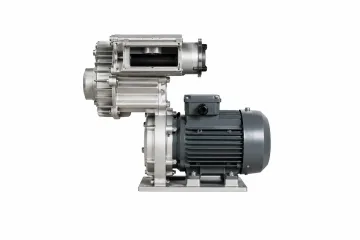

ET-VC-PUMP — Vacuum Pump / Blower

Existing source identity, supply, performance and system interface.

Control handles have their own limits

Handle

Documented selection detail

Type A — Single-Hand Control Handle

Single-hand arrangement; maximum compatible bag load 45 kg; 90° tilt and 360° rotation.

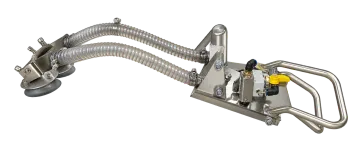

Type B — Joystick Control Handle

Joystick control; stated 1,700 mm operating height range.

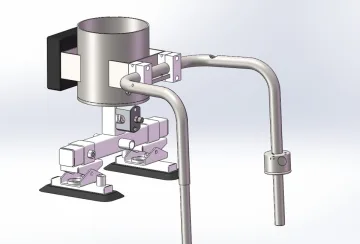

Type C — Extended Two-Hand Control Handle

Extended two-hand control; series maximum compatible load 250 kg.

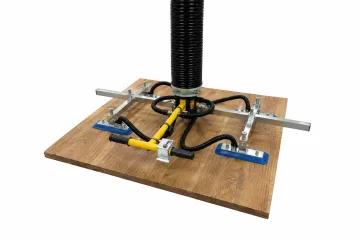

Type E — Extended Motorcycle-Style Control Handle

350 / 550 / 750 mm handle options; handle length is not crane reach.

Prepare one clear identification set

  • Machine model/serial and a photo of the component installed.
  • Overview and close-up of the part, with a scale or dimensioned drawing.
  • Seal profile, connection/thread/flange and material identification if available.
  • The symptom or reason for replacement, and any recent change in the workpiece.

Do not select a cup by outside diameter alone. Seal geometry, effective contact, material and connection can differ. Silicone or stainless-steel descriptions also do not establish food-contact or hygienic certification.

Compare contact types and head selection

Does a component need its own machine lifting capacity?

Some components have a stated application or compatibility limit, while others are selected by interface and function. Do not invent a standalone machine load for a filter, valve or hose.

Will a larger pump fix low vacuum?

Not necessarily. Contact leakage, a damaged seal, blocked filter or unsuitable interface may be the cause. Use the support process before changing the source.

Prepare a comparable quotation

Provide the installed machine identity, part photographs, interface dimensions and the required quantity. For a new head or source, add the workpiece range and the complete lifting arrangement.
