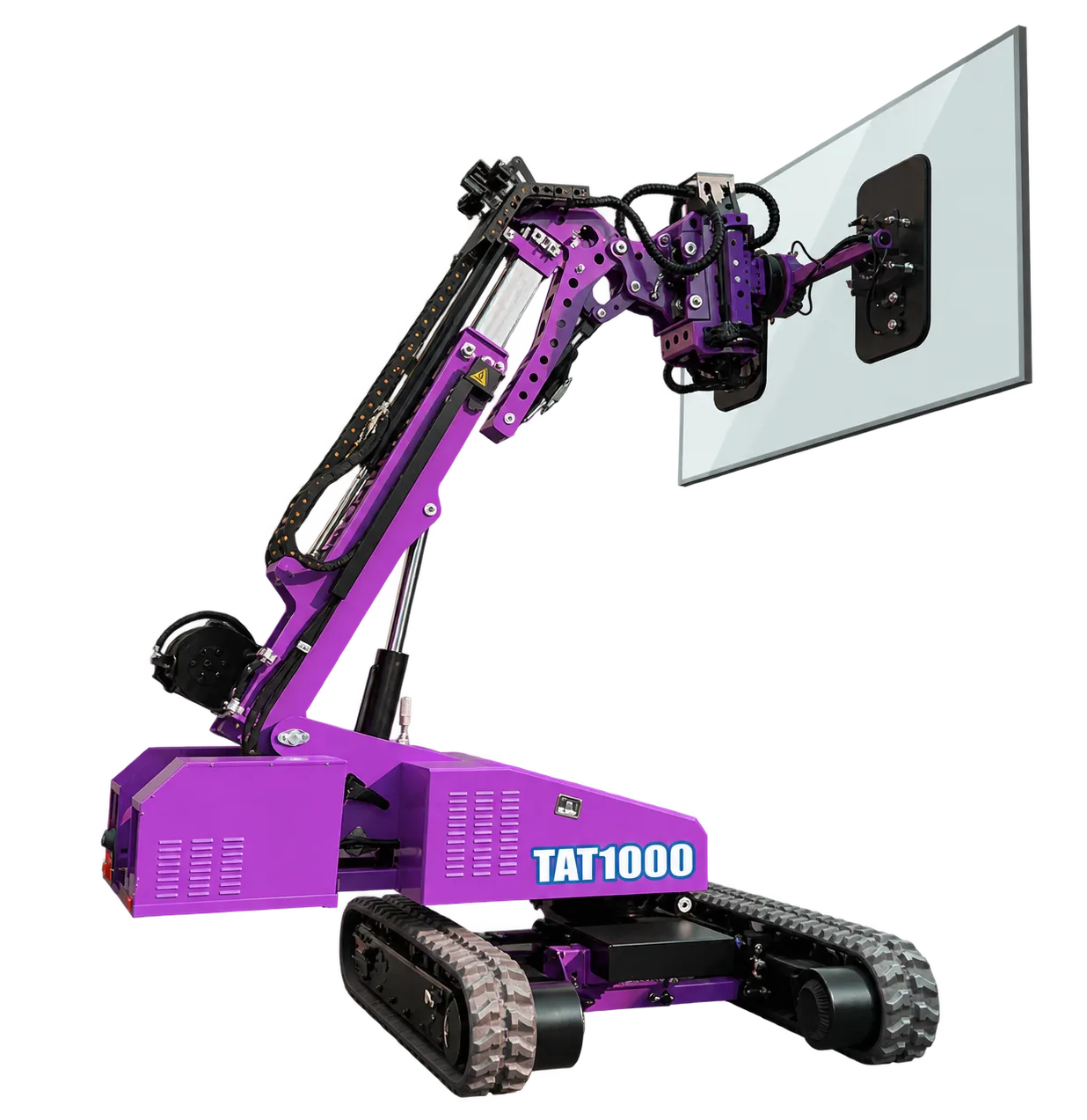

TAT 1000 Tracked Glass Installation Robot

TAT 1000 is an Easytech tracked glass installation robot. Maximum rated load: 1000 kg; Travel motor power: 8 kW; Pad configuration: 500 × 850 mm × 2; Arm extension / outreach: Maximum horizontal outreach 3000 mm; Tilting: 0–120°.

Easytech Premium

TAT 1000 at a glance

Maximum rated load
1000 kg; working-position limits apply
Drive
Battery / electrohydraulic
Mounting
Self-propelled
Materials
Glass

The PDF includes the technical data, configuration guidance, available images and diagrams shown on this page.

TECHNICAL DATA

Technical specifications

Read each value with its stated condition. Workpiece, orientation, utilities and support equipment must fit the same configuration.

TAT 1000 · technical data
Maximum rated load1000 kg
Maximum lifting height6150 mm
Travel driveTracks
Travel motor power8 kW
Gradeability15%
Pad configuration500 × 850 mm × 2
Vacuum systemDual vacuum systems
AlarmAudible and visual alarm
Arm extension / outreachMaximum horizontal outreach 3000 mm
Tilting0–120°
Rotation360° continuous rotation
Side shift100 mm (total stated travel; not ±)
Side turning90° to each side
BatteryLFP 51.2 V / 150 Ah × 2
Charging inputAC220 V / 110–240 V; confirm the supplied charger input
Operating time6–8 h; actual duration depends on the duty cycle
Minimum overall dimensions2672 × 1377 × 2061 mm
Equipment weight3000 kg
Load limitationsVaries with outreach and posture; use the load chart. Maximum height is not the full-load height.
Boom slewing360°
Vertical fine adjustment150 mm
Interchangeable attachmentsVacuum pads, forks, winch
Track levelingAutomatic
Upper arm levelingAutomatic
Maximum leveling height difference per trackVertical 320 mm / horizontal 400 mm
Maximum automatic leveling slope10°
Counterweight movement300 mm
Remote controlWireless remote control
Attachment optionsVacuum head, forks or winch

ENGINEERING REFERENCE

Drawings & working envelopes

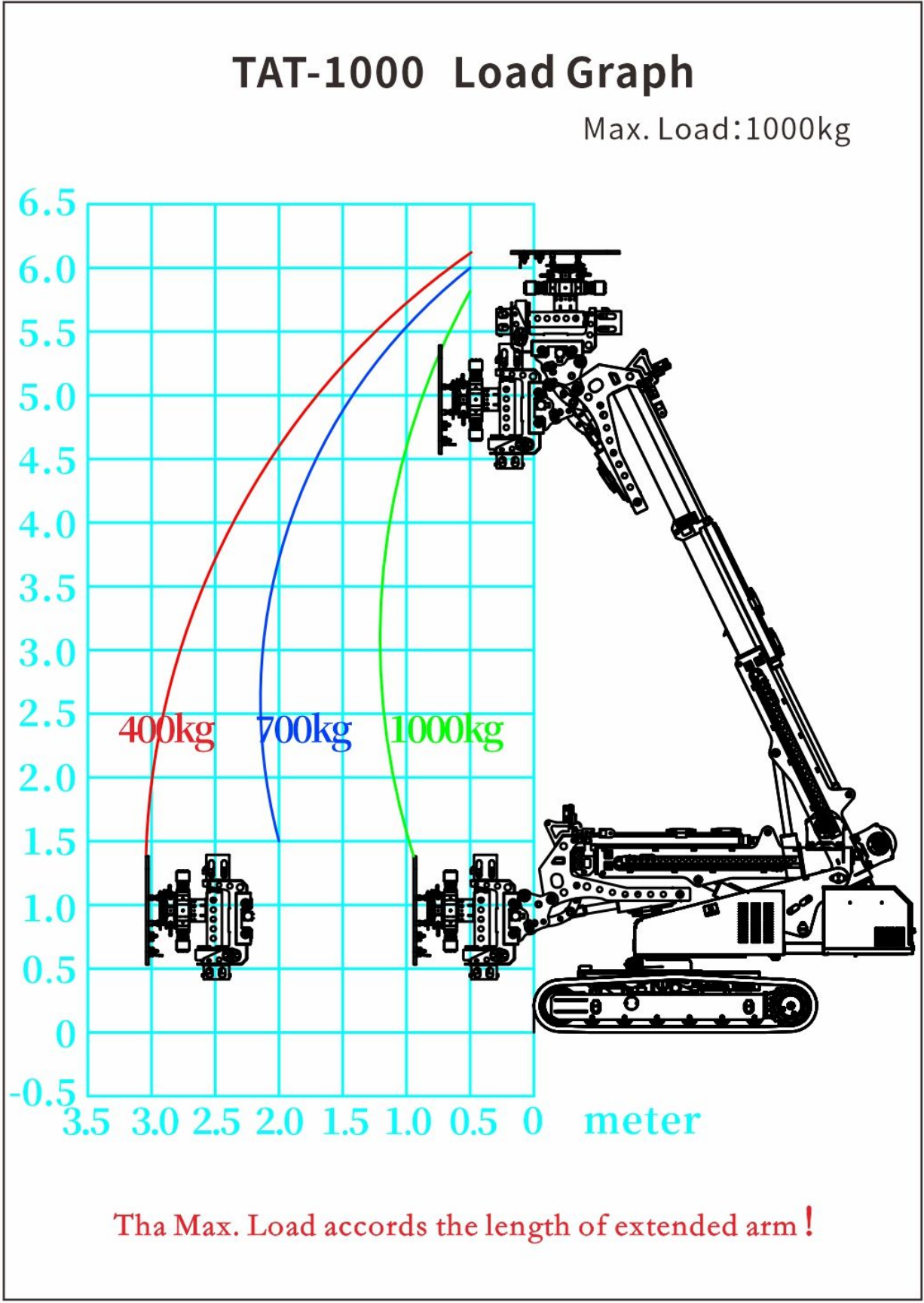

TAT 1000 - load envelope
TAT-1000 load envelope. Axes are in metres; curve labels are allowable loads in kg for the illustrated configuration. Maximum height and maximum load are not simultaneous ratings.
Open full-size drawing

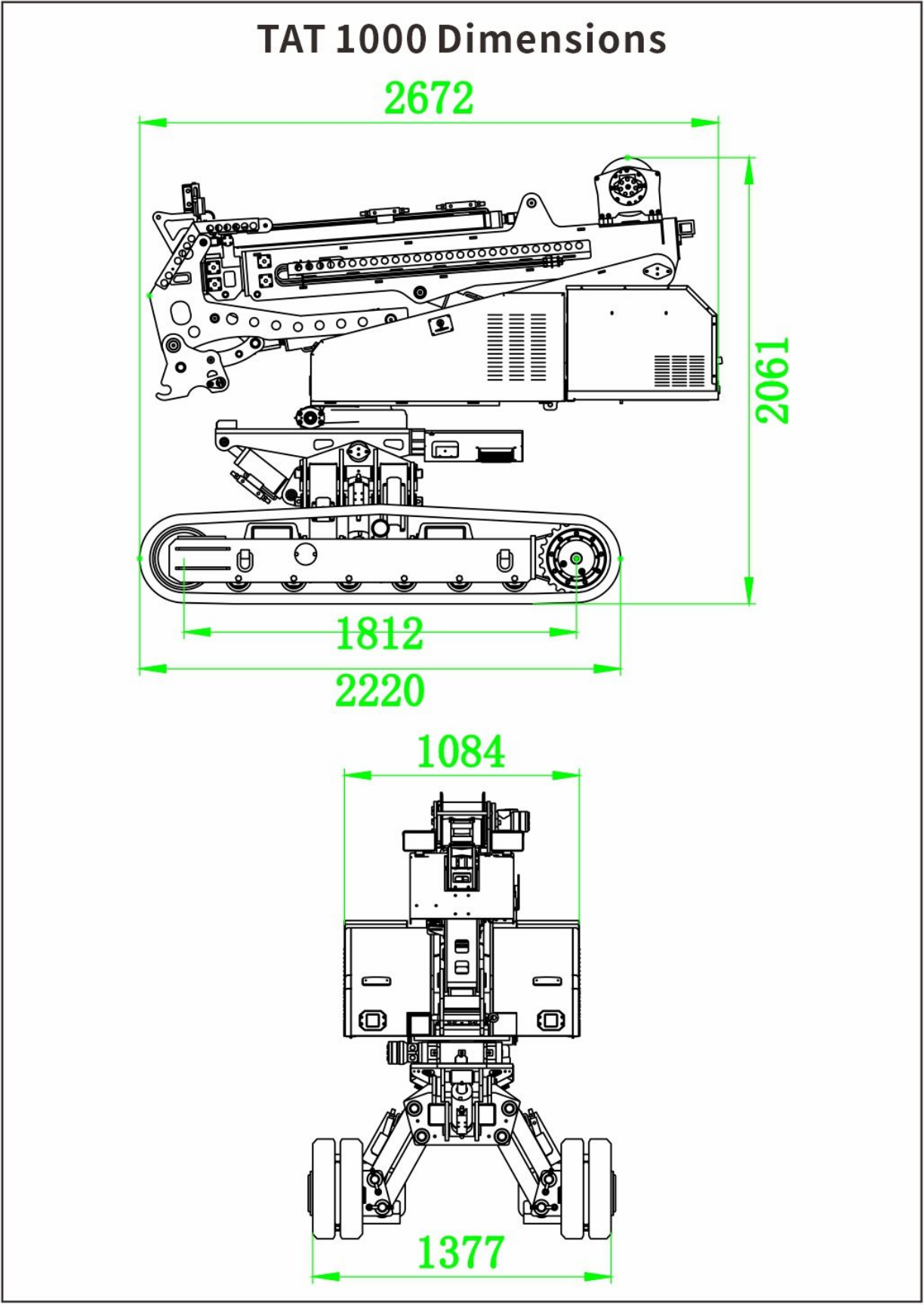

TAT 1000 - dimensions
TAT-1000 dimensional arrangement, mm. Dimensions refer to the illustrated folded or working posture, not necessarily the minimum transport envelope.
Open full-size drawing

Access route and configuration-specific working position

The maximum load and maximum lifting height are separate limits. First check access and setup with the pane and attachment, then locate the required installation position on the matching load chart. Control type and powered versus manual positioning differ across the range.

Compare the published configuration

Selection point

TAT 1000 — Tracked Glass Installation Robot

TAT 1500 — Tracked Glass Installation Robot

WSR-1000M — Wheeled Glass Installation Robot

Maximum rated load

1000 kg

1500 kg

1000 kg

Maximum lifting height

6150 mm

8660 mm

5000 mm

Minimum overall dimensions

2672 × 1377 × 2061 mm

4475 × 1480 × 2336 mm

—

Equipment weight

3000 kg

7110 kg

2977 kg

Pad configuration

500 × 850 mm × 2

Ø400 mm × 8

Ø400 mm × 8

Equipment and intended application

The mobile chassis carries the lifting arm and vacuum head. Travel positions the machine; arm movement provides reach and height; the head aligns the glass using the listed tilt, rotation and fine-positioning functions. Each movement has its own limit, and the load envelope changes with reach and posture.

Workpiece suitability and limits

Topic

Details

Access to the work area

Compare the transport envelope with doors, lifts, corridors and turning spaces. Check machine mass plus the transported load against the floor and access route; width alone does not establish access.

Placement geometry

Specify glass weight and size, final installation height, horizontal setback and any overhead obstruction. Maximum height and maximum load are separate values and must not be combined as a single operating point.

Ground and weather

Check surface strength, slope, obstacles and the support arrangement. Gradeability is a travel specification, not permission to lift on that slope. Outdoor work also requires suitable glass, weather and site conditions.

Configuration and supply boundaries

Topic

Details

Chassis and battery

The model table defines the travel drive, battery and minimum dimensions where stated. Listed operating time is duty-dependent and is not a guarantee for every lift cycle.

Vacuum head

Pad arrangement and vacuum circuits apply to the stated head. A fork or winch option uses a different load path and requires its own attachment instructions.

Positioning controls

Side shift translates the head; side turning swivels it; rotation turns the pane in its plane. These functions must not be conflated when checking access around an opening.

Counterweights and supports

Use the specified counterweight and support arrangement. Removing weights to reduce transport mass changes the working configuration; it does not preserve the same lifting envelope.

Installation and commissioning

  • Survey access and placement before delivery: door and lift dimensions, floor loading, turns, unloading space and the installation setback.
  • Prepare a suitable charging point using the supplied charger input. Check battery condition and the planned duty cycle before a shift.
  • Inspect the fitted pads, vacuum hoses, hydraulic lines, tyres or tracks, counterweights, support devices and emergency stop. Check both circuits when a dual system is fitted.
  • Commission controls and travel without a load, then carry out the prescribed checks for the selected glass and working posture. The operator needs the machine-specific operating instructions and load envelope.

Handling sequence

  1. Prepare the work area and set the machine to its approved lifting configuration. Keep the pickup and destination accessible for a safe set-down.
  2. Position the head on intact glass contact areas, apply vacuum and check the circuit indications before taking the glass weight.
  3. Use the load diagram for the selected reach and height. Make controlled travel and positioning movements; use fine adjustment to align the glass without forcing it against the opening.
  4. Transfer the pane onto its supports and secure it by the installation procedure before releasing the vacuum. Return the machine to its transport posture before relocating it.

Inspection, maintenance and replacement parts

Topic

Details

Before use

Inspect pads, hoses, vacuum indications, controls, tyres/tracks and the support arrangement. Investigate any alarm or change in movement.

Hydraulic system

Check for leaks and damaged hoses without touching pressurised leaks. Support moving parts and isolate energy before maintenance.

Battery and charging

Keep terminals and charging leads in serviceable condition and follow the fitted battery/charger instructions. Report declining runtime instead of assuming the catalog duration still applies.

Service identification

Record the model and serial number, attachment type, battery specification and affected component. Pad, hydraulic-seal and controller replacements must match the actual installed version.

Troubleshooting priorities

Topic

Details

Arm movement is inhibited

Check overload indication, emergency stop, power and the permitted posture. Do not bypass an interlock to reach the target position.

One vacuum circuit warns

Set the pane down using the prescribed safe procedure and find the cause. A second circuit does not authorise normal operation with a known fault.

Travel or positioning becomes irregular

Stop in a supported state and inspect the route, charge level, controls and hydraulic system. Resume only after the cause is resolved.

Frequently asked questions

What load should I use when selecting TAT 1000?

TAT 1000 lists a maximum rated load of 1000 kg. The permissible load at the required height and outreach comes from the matching configuration load chart. Maximum height is not the full-load height.

Can it lift its maximum rated load to maximum height?

Only if the model load chart explicitly permits that combination. Select the curve for the actual load and check the complete reach/height path, not just the final point.

What is the difference between side shift and rotation?

Side shift moves the pane laterally without changing its angle; rotation turns it within its plane. Side turning changes the head direction relative to the arm.

Can a narrow machine automatically use a passenger lift?

No. Check the whole transport envelope, turning space, total transported mass and lift loading restrictions. The narrowest chassis width is only one of those checks.

Information for application assessment

  • Identify the workpiece material, dimensions, mass, contact surface and centre of gravity. Include the least favourable item in a mixed production range.
  • Describe pickup and placement positions, required orientation changes, handling frequency and the site layout.
  • Identify the available power or air supply and any host machine, crane, support structure or interface that must be retained.
  • State the destination market and required documentation, accessories and packing constraints so the proposed configuration can be assessed as a complete system.

Document scope

This product specification supports equipment selection and project definition. It includes the model data and application guidance presented on the product page. The operating instructions supplied for the actual machine govern commissioning, testing, maintenance procedures and safe use; this specification does not replace them.
